Not A Pot, Not An Encoder: Exploring Synchros For Rotational Sensing

Some components have terrible publicists. Potentiometers are easy to explain. Encoders get all the digital glamour. Resolvers have a loyal fan club among motion-control people. But synchros? They often sit in the corner like the smartest engineer at the meeting who forgot to update their LinkedIn.

That is a shame, because synchros are one of the most interesting ways to measure and transmit rotational position. They are not simple variable resistors. They are not optical discs spitting out digital counts. Instead, a synchro is an electromechanical device that behaves a lot like a rotary transformer, turning shaft angle into a unique set of AC voltages. If that sounds delightfully old-school, it is. It is also incredibly useful in the right system.

For engineers, technicians, restorers, avionics nerds, and anyone who has ever opened a panel and asked, “What on earth is this round thing with three stator leads doing here?”, this guide walks through what synchros are, how they work, why they mattered so much, and why they still deserve respect in modern rotational sensing.

What Is a Synchro, Exactly?

A synchro is an electromechanical transducer used to represent angular position. In plain English, it converts the rotation of a shaft into an AC electrical signal pattern that another device can read, compare, or use to move a matching shaft. That makes it ideal for transmitting angle information from one location to another.

The easiest mental model is this: a potentiometer changes resistance with angle, while a synchro changes magnetic coupling with angle. Instead of giving you a simple voltage divider output, it produces a set of AC voltages whose relationships depend on the shaft position. That makes the device rugged, elegant, and surprisingly good at sending angle information over distance.

Historically, synchros became important in systems that needed remote indication and control long before cheap digital electronics arrived. They showed up in naval fire-control systems, repeater compasses, radar gear, aircraft instrumentation, and other applications where “tell that remote shaft exactly where this shaft is” was not a luxury. It was the whole job.

How a Synchro Turns Rotation Into Information

The basic anatomy

A typical synchro has two main magnetic parts: a rotor and a stator. The rotor is the rotating element attached to the shaft you care about. The stator is the fixed winding structure around it. Feed the rotor with an AC reference signal, and the magnetic coupling into the stator windings changes as the rotor turns.

Unlike a basic resolver, which usually gives sine and cosine outputs, a classic synchro uses three stator windings spaced 120 degrees apart. That means one mechanical angle creates one specific three-voltage pattern. Rotate the shaft, and the balance among those three outputs changes. The magic is not in one wire alone; it is in the relationship among them.

That is why synchros are often described as rotational sensing devices rather than simple sensors. They do not just say “here is a voltage.” They say, “here is a coordinated AC signature that represents angle.”

Why the AC approach matters

Because synchros work as transformer-like devices, they can be very effective in environments where dirt, vibration, long cable runs, and electrical noise make life harder for simpler components. In many aircraft and legacy instrumentation systems, 400 Hz AC excitation became common, which also fits nicely with the broader world of aerospace power and instrumentation.

This is where synchros part ways with the everyday potentiometer. A pot can be wonderfully cheap and simple, but it relies on a resistive track and wiper contact. Synchros, by contrast, are more about magnetic coupling than sliding contact wear. They are built for a more serious kind of conversation.

Synchro vs. Potentiometer vs. Encoder vs. Resolver

If you are choosing a rotational sensor, the real question is not “Which technology is best?” It is “Best for what?” Every device brings a personality to the party.

So where do synchros shine? They are especially good when you want to transmit rotational position through analog AC relationships, drive or compare remote shafts, or integrate with legacy aerospace and defense systems. They are less attractive when you just want a compact digital part that drops into a microcontroller board with minimal drama.

Resolvers deserve special mention because they are close cousins. In many modern motion systems, the resolver is the more common survivor because it outputs sine and cosine signals that convert neatly into angle through arctangent math. A synchro, meanwhile, remains the older sibling with a slightly more formal wardrobe and a stronger remote-control heritage.

Types of Synchros You May Run Into

Not all synchros do the same job. The family tree is more interesting than it first appears.

Transmitter

This is the angle source. Rotate the shaft, and the transmitter generates the output pattern representing that angle.

Receiver

This unit accepts the transmitted electrical pattern and mechanically follows it, reproducing the original shaft position on a dial, indicator, or other output device.

Differential synchro

This device combines or subtracts angular information. Think of it as the gearbox of the synchro world, but with windings and clever math hiding under the hood.

Control transformer

This type is used when the system cares more about error angle than about directly moving a shaft. It compares a commanded angle with an actual angle and produces an error signal for servo control. In other words, it is the diplomatic negotiator of the group.

Where Synchros Still Earn Their Keep

It is tempting to think of synchros as museum pieces. That is not quite fair. They are legacy components, yes, but not dead ones.

In aerospace, synchro and resolver outputs still appear in angle-of-attack sensors, flight instrumentation paths, actuator feedback arrangements, and support hardware for simulation, testing, and calibration. Shipboard and defense systems have long used synchro-style angle transmission for navigation, radar, and fire-control functions. Even when the final control loop is digital today, the physical world often still hands the system analog angle information that must be measured, converted, or simulated.

That is why test vendors still sell modern synchro and resolver simulators, standards, and measurement modules. If the technology were purely extinct, nobody would be building precision tools to emulate it, measure it, and verify it. Yet those tools exist because real systems still depend on this language of rotational sensing.

There is also a practical engineering reason synchros stay relevant: replacement is expensive. If an aircraft, naval platform, simulator, or industrial control system was designed around synchro signaling, ripping all of that out can cost far more than maintaining or interfacing with what is already there.

Why Engineers Still Respect Synchros

Synchros earn respect the old-fashioned way: by surviving ugly environments and doing a specialized job well.

They are valuable when the application needs reliable rotational sensing across long cable runs, clear angular relationships, or remote shaft correspondence. Their transformer-based behavior can be friendly to harsh service conditions. And because they encode position through AC relationships instead of delicate optical structures, they often feel at home in places where precision hardware gets rattled, heated, splashed, or generally treated like it owes the machine money.

They also fit naturally into servo and control architectures where comparing command angle and actual angle matters more than simply reading a number on a microcontroller pin.

Where Synchros Fall Short

Now for the honest part: synchros are not the universal answer. They are typically larger and more specialized than modern encoder solutions. They need excitation. They often need matching receivers, converters, or signal-conditioning hardware. If your design is born digital and space constrained, an encoder or compact resolver may be the more sensible choice.

Resolution is another important nuance. A high-end digital encoder can deliver eye-watering resolution and convenient interface options that make software engineers happy enough to buy lunch for the hardware team. A synchro system can be precise, but precision depends heavily on the full chain: the sensor, cabling, converter, alignment, and the rest of the servo loop. No rotational sensing device gets to skip system-level reality.

Practical Design Notes for Real Systems

If you are actually dealing with synchros instead of merely admiring them from a safe academic distance, a few practical truths matter.

First, excitation frequency and voltage matter. Aerospace systems often use 400 Hz references, but modern measurement gear may support a wider range depending on the sensor and interface. Second, line losses matter. The farther the signal travels, the more careful you need to be about wiring, shielding, grounding, and measurement technique. Third, conversion matters. Once a synchro or resolver enters a digital system, the quality of the converter and signal conditioning becomes part of the measurement truth.

And finally, do not confuse sensor accuracy with whole-system accuracy. Shaft couplings, backlash, mounting eccentricity, thermal drift, converter errors, and mechanical slop all take a bite out of theoretical perfection. The rotational sensing world has never met an error budget it could not complicate.

Why “Not a Pot, Not an Encoder” Still Matters

The phrase in this article’s title is more than a joke. It points to an important engineering lesson: not every sensing problem should be forced into the cheapest or most fashionable solution.

Potentiometers are great when cost and simplicity rule. Encoders are fantastic when digital integration and high resolution dominate. Resolvers are stars in rugged servo feedback. Synchros own a slightly different patch of ground: remote angular transmission, comparison, and control in systems where AC electromechanics still make elegant sense.

That makes synchros worth understanding, even if you never design one into a new consumer product. Plenty of engineers meet them in avionics, simulation, restoration, defense support, industrial retrofits, and test equipment. When that day comes, it helps to know you are not looking at a weird potentiometer with stage fright.

Field Notes: What Working With Synchros Actually Feels Like

Talk to people who have spent time around legacy control panels, aircraft instruments, naval electronics, or motion-control benches, and a pattern emerges: synchros rarely impress anyone at first glance. They are not flashy. They do not announce themselves with a crisp SPI interface or a neat little datasheet promising easy plug-and-play setup. Instead, they show up with terminals, winding labels, AC references, and a vague promise that everything will make sense once you stop thinking like a software person for five minutes.

One of the most common experiences people describe is that first moment of confusion. You probe a line expecting a DC voltage that changes with angle, and instead you see AC signals that appear to dance around each other. At first it can feel like the system is being intentionally dramatic. Then someone explains that the information is in the relationship among the signals, not in a single voltage level, and suddenly the entire device becomes much more interesting.

Another very real experience is learning respect for alignment. A synchro system that is slightly out of mechanical alignment can waste hours of troubleshooting time because nothing looks catastrophically wrong. The shaft turns. The signals exist. The receiver moves. Yet the indicated angle is off just enough to be annoying, and just inconsistently enough to make everyone suspicious of everyone else. Working with synchros teaches patience the way old tube gear teaches humility.

Technicians also tend to remember the sound and feel of legacy electromechanical systems built around synchros. There is often a physicality to the equipment that modern solid-state systems hide. Indicators move. Servo loops hunt a little. Mechanical couplings remind you that the signal is not abstract software; it is rotation, magnetics, inertia, and real hardware negotiating in real time.

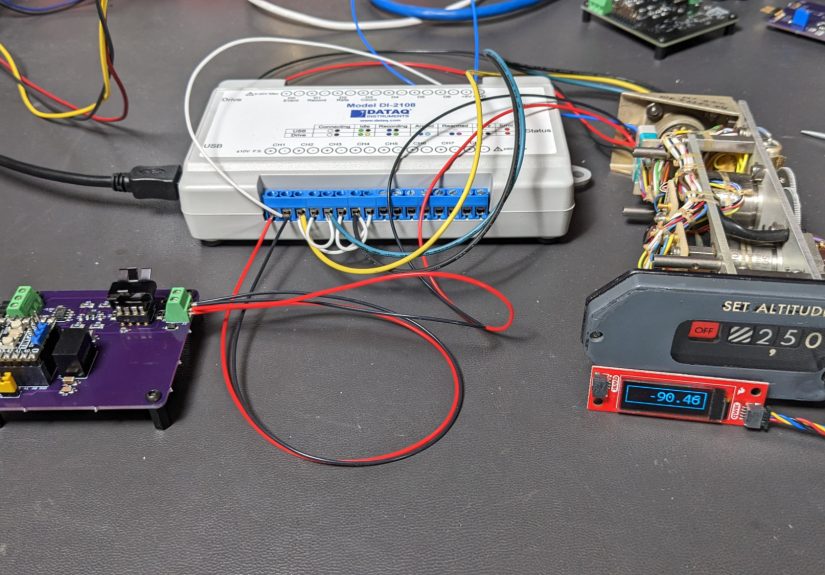

Then there is the bench-test experience. Once you connect a simulator or a good measurement module and begin sweeping angle deliberately, synchros become much less mysterious. You can watch a receiver follow, verify phase relationships, compare expected outputs, and start seeing the device as a language rather than a puzzle. That is usually the turning point. What seemed antique suddenly feels elegant.

Engineers working in retrofits often describe another kind of experience: compromise. They may love modern digital encoders, but the platform in front of them already speaks synchro. So the practical solution is not to replace everything. It is to translate. That means converters, interface boards, simulation gear, and careful validation. The lesson is simple but important: good engineering is not always about using the newest component. Sometimes it is about respecting the installed base and making old and new hardware cooperate without drama.

And finally, there is the emotional experience, which sounds silly until you have it yourself. Many people expect old sensing technology to feel crude. Synchros do not. Once you understand them, they feel clever. They come from an era when engineers solved hard control problems with magnetics, geometry, and disciplined system design. That makes working with them oddly satisfying. You are not just debugging a sensor. You are decoding a design philosophy.

Conclusion

Synchros may not dominate modern product brochures, but they remain one of the smartest rotational sensing technologies ever put into serious service. They bridge mechanics and electronics with a transformer-like approach that is especially well suited to remote angle transmission, servo comparison, and rugged control environments. They are not a substitute for every encoder, and they are certainly not a dressed-up potentiometer. They are their own thing, with their own strengths, and in the right system they are still remarkably effective.

So the next time you see a synchro buried in an aircraft instrument path, simulator rack, naval panel, or retrofit cabinet, do not dismiss it as obsolete hardware. It may be old, but old is not the same as irrelevant. In engineering, some technologies age into wisdom. Synchros are firmly in that club.
